Products
Rescue Tripod with Winch - Upgrade Version
Upgraded Rescue Tripod with Winch (Safety Rotation) for Confined Space | Black Viper - 20m / 30m Type
- Conform to EN795:2012
- Winch body - Outward facing (safety rotation)
- Reduced interference and injury risk reduction
- High Strength Aluminum Alloy
- Automatic-lock capstan for rising and falling
- Adjustable height: 1.15m to 2.15m
- Stainless Steel wire rope line
- Wire rope length (Winch): 20m / 30m

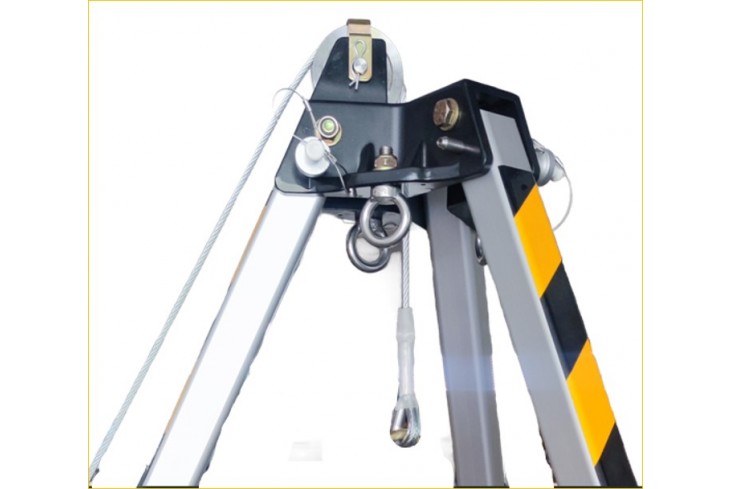

- Bolt eye anchorage on top of tripod
- Latch-lock system for secured tripod lifting
- Safety tripod leg chain (prevent spreading and collapsing)
- Weighs ≤ 30kg
Note: SRL ( Self Retractable Lifeline ) is not included, available for purchase separately

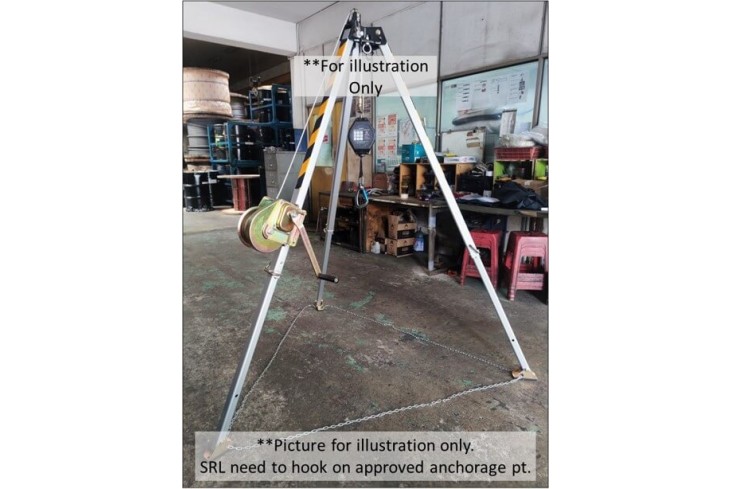

Gallery picture is solely for illustration only, SRL is to be hooked on proper anchorage point.
*Tripod without winch is also available upon request
**Winch mount model ( inside facing ) variant available upon request
Safety Note:
Why Outward-Facing Winches Matter?
When selecting a rescue tripod for personnel lifting, the orientation of the winch is a important safety factor.
The Risk of Inward-Facing Winches: Traditional tripods often mount the winch facing inward. During an emergency rescue or routine lifting, the winch handle and the cable are positioned directly over the entry point. This creates a high risk of the equipment or the operator's movements causing unintentional injury to the person being hoisted.
The "Black Viper Upgrade" Solution:
The upgraded rescue tripod with winch model features a winch assembly that is rotated and adjusted to face outwards.
- Clear Clearance: Moves the mechanical action away from the rescue path, ensuring the person being lifted has a clear, unobstructed exit.
- Operator Ergonomics: Allows the operator to stand in a safer, more stable position outside the tripod footprint.
- Injury Prevention: Eliminates the risk of the handle striking the personnel or the cable snagging on the victim's gear during the critical lift phase.
