Common Steel Wire Rope Construction Types

Article last updated on 4 Feb 2026

Steel Wire Ropes - How Different Strand Construction Looks Like?

To understand steel wire rope's construction type, we need to first understand what makes up a steel wire rope.

We shall answer the question through the following sections below:

1. What makes up a Steel Wire Rope?
2. What are the 4 Common Steel Wire Rope Construction?
3. How do we Decode the number-identifiers identifying the wire rope construction type.
4. What are the different types of wire rope construction Core?

Lets' begin...



1. What makes up a Steel Wire Rope?

Steel Wire Rope is made up of stranding wires, with the strands closing around a core usually made up of fiber (natural/synthetic) or steel. For a clearer view on its appearance, refer to the dissected wire-rope picture below.

Characteristics

Steel Wire Rope is generally characterized by its Classification, Construction and Lay Types.

• Construction: Arrangement of wires within each strand
• Classification: No. of strands & No. of wires per strand
• Lay: Direction & length of the twist of the strands and wires

Generally, Steel Wire Rope made up from few large-wire strands will be more abrasive resistance, and less flexible than a wire rope made up from more small-diameter wire strands.

For this article, we will cover the Construction Types of the Steel Wire Ropes for identification purpose; we will use the 4 very common wire rope construction for illustration...



2. What are the 4 Common Steel Wire Rope Construction?

1. Standard/ Single Layer: All wires same diameter (only core may vary)
2. Seale: Same numbers of wires in layer 1 (inner) & layer 2 (outer); Layer 2 having larger diameter (1+n+n)
3. Filler: 2X numbers of wires in layer 2 (outer) against layer 1 (inner), with “Filler” wires insert between layer 1 & 2
4. Warrington: 2X numbers of wires in layer 2 (outer) against layer 1 (inner); Layer 2 consist of 2 dimensions (2 diameters)



Sample Illustration of the 4 Common types of Steel Wire Rope Construction :

     ​​​

















More Picture-Examples On the 4 Common Constructions:



Combination Construction Type

There are also many other types of strand constructions available in the market, one of them is a combination strand construction type known as the Warrington Seale (WS), which has a Warrington construct in the inner layer, with the outer layer per Seale construct, this construction is typically known for its superior fatigue resistance and flexibility.



3. How do we Decode the number-identifiers identifying the wire rope construction type.

Decoding Number Identifiers On Construction Type

One might wonder how do we intepret the number-identifiers on the construct type; to ease any confusion on what each of the numbers (identifier) refers to, let us use a typical Warrington Seale Construct as an illustration example.

Let us decode what each of the numbers in the wire rope construct (below) means!

We hope the example above help ease some of your confusion on the number identifiers of the Steel Wire Rope Construct.

By the way, did you notice the abbreviation IWRC identified on the above example, and wondered what it stands for?

The abbreviation IWRC refers to Independent Wire Rope Core, which identifies the Core of the wire rope construction.  The next section will cover more information on the steel wire rope core.



 4. What are the different types of wire rope construction Core?

There are 3 common types of steel wire rope core used:

1. IWRC, Independent Wire Rope Core
2. WSC, Wire Strand Core
3. FC, Fiber Core

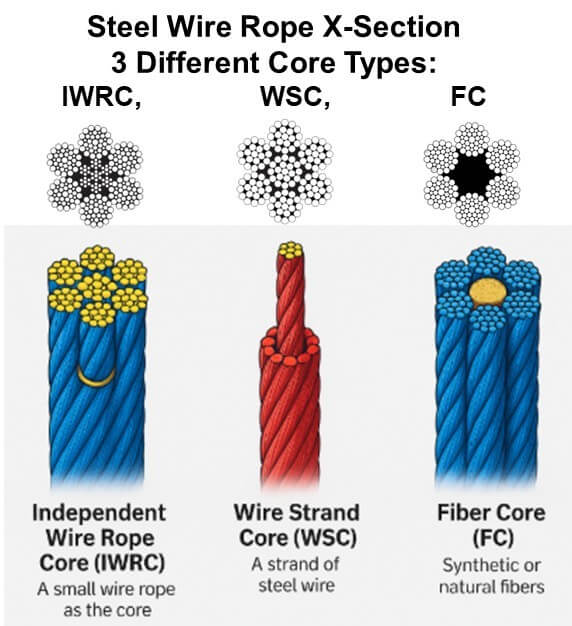

Let us look at a simple illustration, and briefly cover each of the 3 different cores...

1. Independent Wire Rope Core (IWRC) - What it is?

• A small wire rope placed in the center of a larger rope.
• Key Strengths:
  • Highest strength of all core types;
  • Best resistance to crushing and heat
  • Makes the rope up to 10-15% stronger
• Common Uses:
  • Heavy-duty work — cranes and hoist, winch lines, construction.

2.  Wire Strand Core (WSC) - What it is?

• A single steel strand used as the rope’s center.
• Key Strengths:
  • Stronger and less stretchy than fiber cores
  • More flexible than IWRC
  • Good all-purpose steel core
• Common Uses:
  • Mooring lines, control cables, smaller winches.

3. Fiber Core (FC) What it is?

•  A core made from synthetic or natural fibers.
• Key Strengths:
  • Most flexible option
  • Great fatigue resistance (handles bending well)
  • Often pre-lubricated → good in corrosive environments
• Limitations:
  • Can get crushed under heavy load
• Common Uses:
  • Applications where flexibility matters — rigging, general-purpose ropes.







Interested to know more about steel wire ropes? Check out the link below where we look into into differentiating the different wire rope lays!

LINK: WIRE ROPES LAY TYPES - HOW TO DIFFERENTIATE THEM

Looking for any Steel Wire Ropes for your project? Do check out the Steel Wire Ropes that STL carries.

LINK:  STL - STEEL WIRE ROPES



That's all for now... do feel free to let us know if you have any enquires on your wire rope needs.
